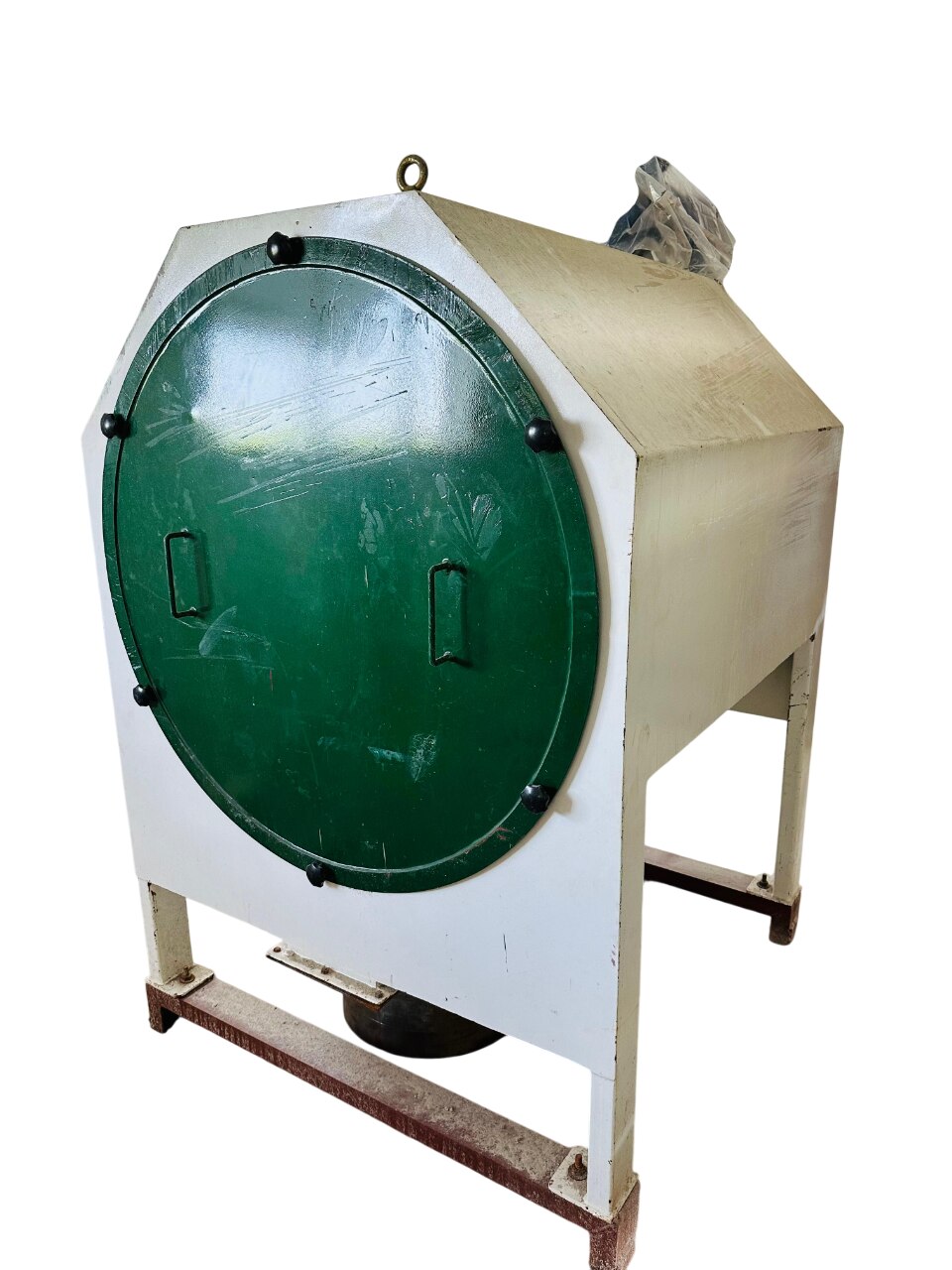

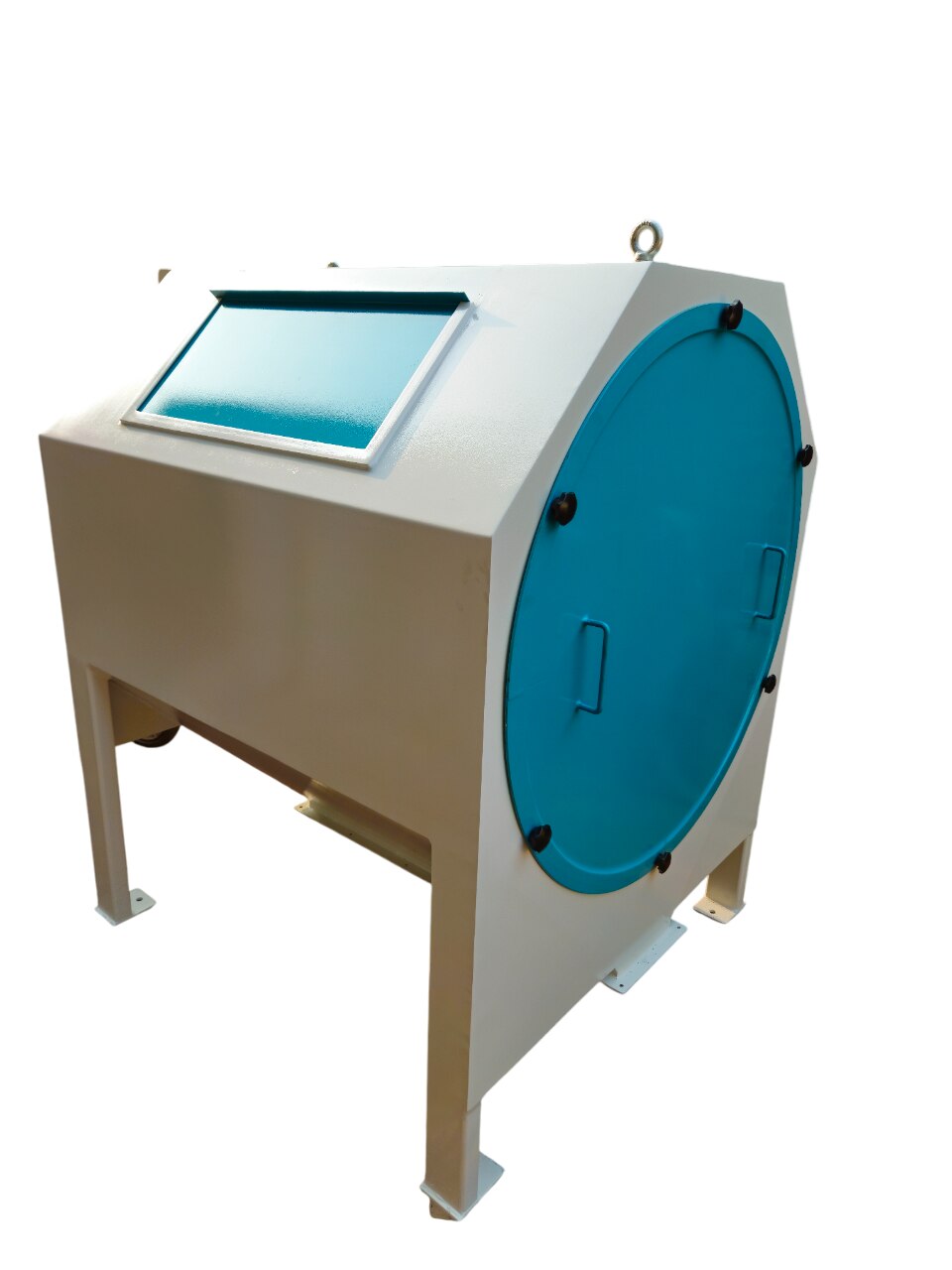

DRUM SIEVE MACHINE

This Machine utilized in flour mill for the pre-cleaning of grain and the separation from large foreign bodies. Reduces the wear on the subsequent machines in the production process. The cylinder rotation is obtained by means of a gear motor.Drum Sieve is a versatile machine used for efficient and accurate separation of solid materials based on their particle size. It consists of a cylindrical drum with perforated screens or mesh that allows the passage of particles of a specific size. As the drum rotates, the material is fed into it, and the particles are sorted into different size fractions based on their ability to pass through the screens. The Drum Sieve is widely used in industries such as agriculture, mining, and recycling, for tasks like grading, sorting, and separating materials. It offers reliable and customizable sieving capabilities, facilitating optimal material classification and improving overall process efficiency.

Specification Description

Model Drum Sieve Machine

Manufacturer SAIFCO AGROTECH ENGINEERS

Capacity Up to 5 tons/hour

Power Requirement 2-5 HP

Drum Size 1200 mm x 3000 mm

Material Mild Steel (MS) or Stainless Steel (SS)

Sieve Hole Size Customizable (2 mm - 10 mm)

Machine Dimensions 2500 mm (L) x 1500 mm (W) x 1800 mm (H)

Weight Approx. 800 kg

Cleaning Efficiency Up to 99%

Applications Grain cleaning / de-stoning and impurities removal

Usage Pre-cleaning and grading of grains and seeds

Motor Speed 1440 RPM

Voltage 380-440V / 50 Hz 3 Phase

Warranty 1 Year

Optional Features Dust collection system / Variable sieve sizes
